Perforated Gypsum Acoustic Board

Gypsum Perforated Acoustic Boards are high-performance ceiling and wall solutions designed to improve sound quality and reduce unwanted noise. Manufactured from high-grade gypsum with precision perforations, these boards offer excellent sound absorption, fire resistance, and thermal insulation, making them an ideal choice for modern interiors.

The perforations on the surface are scientifically designed to absorb and diffuse sound waves, helping to reduce echo and enhance speech clarity. When backed with an acoustic fleece or insulation material, they achieve an NRC (Noise Reduction Coefficient) of up to 0.85, ensuring superior acoustic performance.

Along with their technical benefits, Gypsum Perforated Boards also provide a smooth and elegant finish, suitable for auditoriums, conference halls, classrooms, theatres, offices, hotels, hospitals, and residential projects. They are lightweight, easy to install on standard suspension systems, and available in various patterns, sizes, and thicknesses to suit design and performance needs.

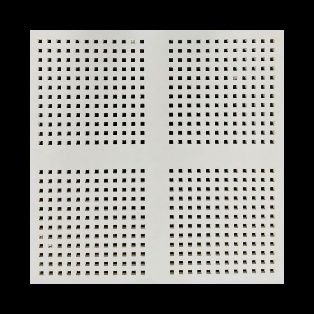

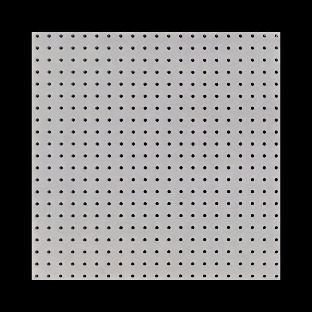

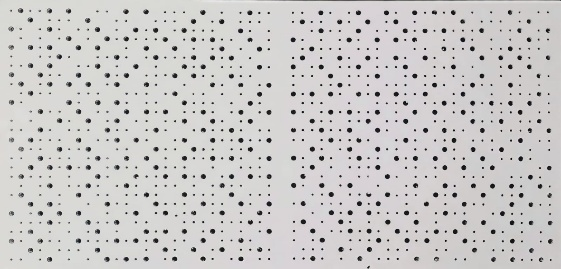

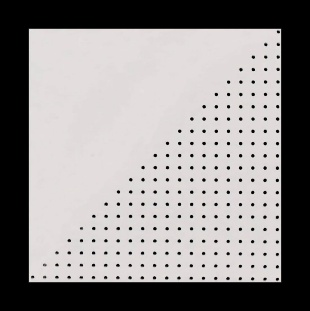

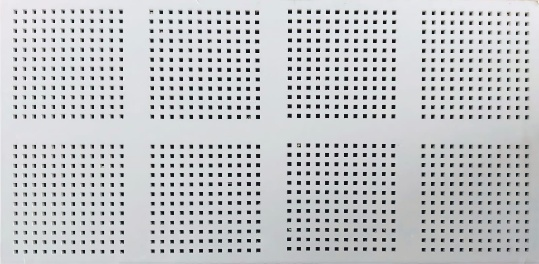

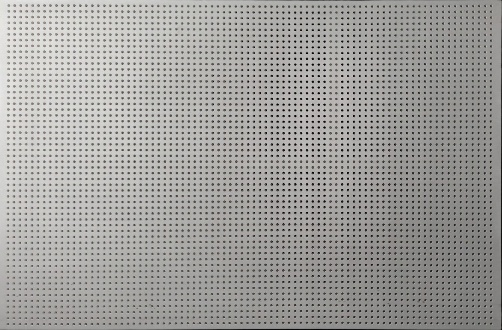

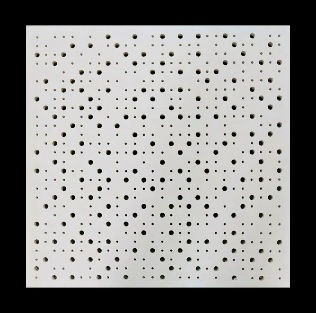

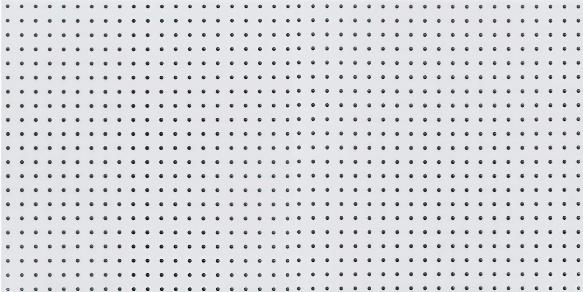

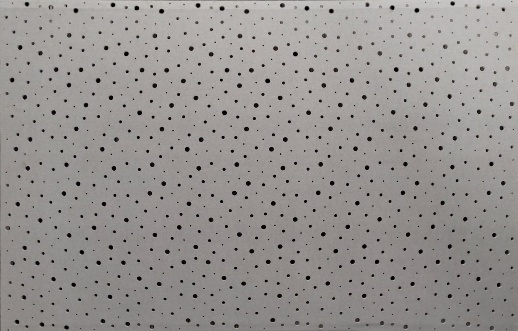

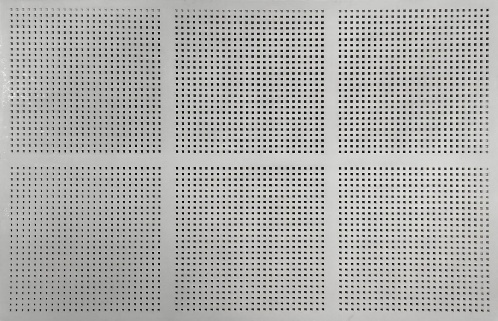

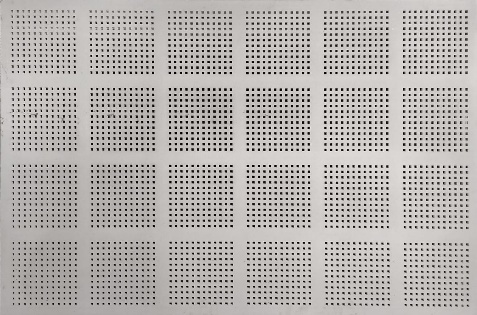

Design

Technical Specifications & Features

Technical Specifications
PROPERTY SPECIFICATION
MaterialHigh Quality Gypsum Board
Size595x595mm, 595x1190mm, 1220x1830mm
Thickness12 mm
Noise Reduction (NRC)Up to 0.85 (With backing material)
Light Reflectance0.75 - 0.85
Moisture ContentLess than 2%
Fire ResistanceNon-Combustible (Class 0)
Humidity Resistance99% RH
InstallationT-Grid System / Jointless on GI Channel
Features
  • Excellent Sound Absorption (NRC Up to 0.85 Certified)
  • Non-Combustible Fire Resistance (Class 0 Performance)
  • Elegant Light Reflectance (0.75 - 0.85 Value)
  • High Humidity Resistance 99% RH Integrity
  • Durable High-Grade Composition Precision Perforated Board Build
  • Smooth & Elegant Decorative Finish

Applications

Applications
Corporate Boardrooms & Offices
Auditoriums & Theatres
Conference & Seminar Halls
Broadcast & Recording Studios
Educational Institutions
Banquet & Prayer Halls
Ideal For Spaces That Demand
  • Superior Acoustic Comfort
  • High Aesthetic Appearance
  • Fire Safety & Durability
  • Energy Efficient Interiors
  • Long Lasting Performance
